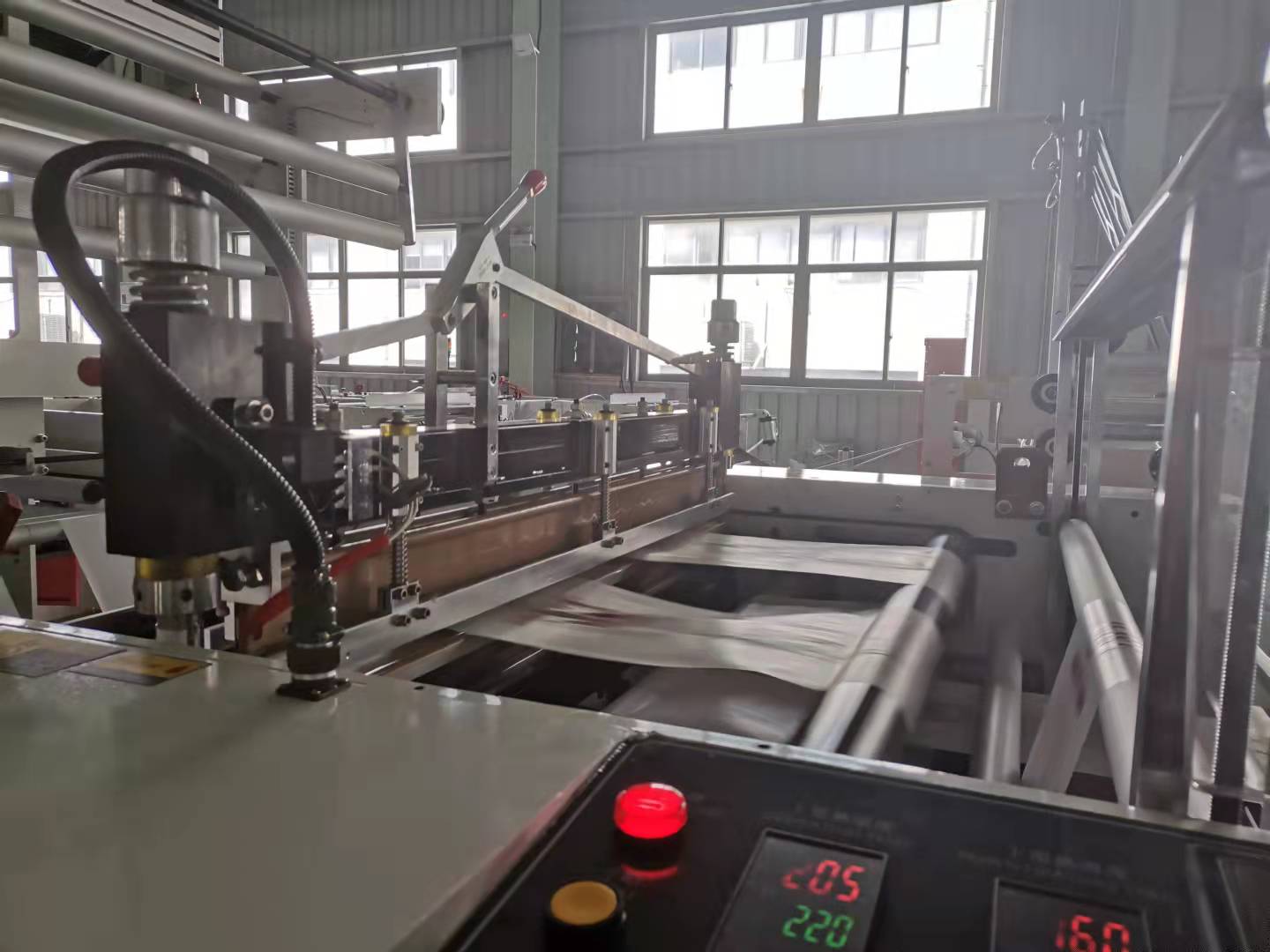

Heavy Duty Biodegradable Black Rubbish Plastic Garbage Bag Making
Machine
Brief Introduction
This machine is producing rolling bag.Also can make two lines /
single line star bag,garbage bag,vegetable bag as well as c fold
table cloth .Fully automatic exchange system can reduce the labour
force,in the excellent servo driven system,it is the best choice
for producing printed bag and blank bag.Easy for operate.
Main Features
1) Use servo motor driving,improve the speed and stability.
2) Long time but low temperature sealing way ensures the quality of
the bag.
3) Can to make printed bags and blank bags.
4) With shuttle sytem for non-stop film feeding, to make bag length
up to 10meters.
Optional
1. Auto label adding device
2. hot slitting & gusseting unit
3. S bag / t shirt bag die cutting system
Technical Variable:
| Type | CW-1000PR+C2 |
| Unwinder width | single line 900mm / double lines 300mmx2
C type: 900mm |
| Rewinder width | with paper core: 600mm single line / double lines 300mmx2
without core: 600mm single line / double lines 300mm x 2
star bag max width: 200mm double lines |
| Production speed | 250pcs/min |
| Line speed | 80-100mtr/min |
| Total power | 18.8kw |
| Machine weight | 2900kgs |
| Machine dimension ( L x W x H) | 6600x3300x1900mm |
HEAT SEALING AND PERFORATION PART:
1.With photocell tracking unit for printed bag making*1line
2.Regarding sealing system,adopt continues transportation swing ,
the film running non-stop,servo motor driver, length size of bag is
250mm-10000mm.
3.Perforation and sealing are set at the same place,in case the
sealing line is changed and affect the perforation.
4.Up and down sealing knife independent temperature control.
5.With C fold unit, for c fold type bag(single lane available)
6.when the material is cut off or finish the machine can automatic
stop system
Sealing knife control by servo motor, control heat sealing time,
and control perforated dotted line depth
Rewinding unit
Can be single line or devided into double lines. Can be with paper
core or without paper core. Can be choose to have optional
labelling unit.
Chovyting machinery company started in 1999 and has steadily grown
to be a leading name in the field of plastic bag converting
machinery. It seamlessly blends professional acumen with personal
experiences of its founders and employees. Reliability and quality
go hand-in-hand with the company’s brand.
Our facility in China comprises of a dedicated team of 150
extremely skilled and qualified workers consisting of engineers,
specialists and technicians. It is equipped with CNC machines and
special tools where all aspects of manufacture, assembly and
testing are carried out by the respective departments. All critical
machine components are manufactured and assembled in-house using
the latest technology, thereby ensuring high quality and standards
of all the products.
Over the years, we have successfully implemented 4500 installations
in over 25 countries. What sets us apart is an active interest in
all aspects of the business. We go out of the way to maintain a
personal touch with all our customers, regardless of the location,
which keeps us one step ahead of our competitors.
- CE certified machines with total quality control
- Machines are designed, engineered and built with the highest
standards and components
- Adopts the latest design and manufacturing of screw and barrel to
achieve maximum efficiency
- This makes sure energy saving and reduces the operation cost for
our clients
- Strong research and design team
Production Capacity:
Product Line Name Production Line Capacity Actual Units Produced
(Previous Year)
Bag Making Machine; Film Blowing Machine; Printing Machine;
Slitting Machine Bag Making Machine: 30 Sets / Month, Film Blowing
Machine: 25 Sets / Month, Printing Machine: 15 Sets / Month,
Slitting Machine: 15 Sets / Month Bag Making Machine: 320 Sets,
Film Blowing Machine: 200 Sets, Printing Machine: 100 Sets,
Slitting Machine: 100 Sets
