Automatic Perforated Drawing Tape Roll Garbage Bag Making Machine
Without Core
Brief Introduction:
1. High speed integrated servo-driven system , suitable for poly
draw , and conventional garbage bags on roll.
2. Hot air sealing system for horizontal lip sealing features
stable sealing.
3. Draw tape feeding system for auto inserting the tape .double
unwind device for auto exchange draw tape is optional choice.
4. The semicircle punching unit : film is taken up by servo motor
and the disign is non-stop punching.Operator can set length for
high speed punching controlled by photo cell during production
runs.
5. Equipped with PLC touch screen operator friendly control system.
Technical Variable:
| Type | CW-1000PG | CW-1200PG | | Unwind width | 1000mm | 1200mm | | unwind diameter | φ900mm(max) | φ900mm(max) | | Length of bag making | 500-1000mm | 500-1000mm | | Speed of bag making | 70-100pcs/min | 70-100pcs/min | | Line speed | 60m/min | 60m/min | | The thickness of bag | HDPE 0.010-0.025mm
LDPE 0.020-0.100mm | HDPE 0.010-0.025mm
LDPE 0.020-0.100mm | | Draw tape width | 100mm | 100mm | | rewidn width | 300mm | 300mm | | Finished roll exchange times | 7rolls/min(max) | 7rolls/min(max) | | total power | 21kw | 25KW | | weight of machine | 4200kgs | 4500kgs | | overall dimension | 12500x2800x3000 mm | 12500x3400x3000 mm | | air compressor(not included) | 7.5HP | 7.5HP |
|
Bag making type: perforation bag on roll only!!!
If you need make the overlap/interleave type bag on roll ,please
check our CW-1000PG+OR machine!
Unwind device
Unwinding adopt AC motor drive type active feeding, large diameter
design, reduce downtime. Driven by a frequency converter to control
tension, which can be automatically along with the change of
tension and roll diameter change speed.

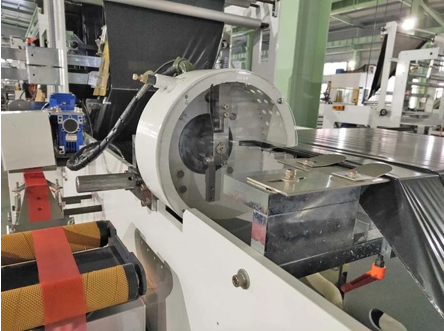

Continuous punching device
Using the latest design of continuous punching equipment, raising
the speed of the bag. Specially designed continuous punching
device, continuous transportation under the state of high speed
punching in the film. With German SICK photoelectric encoder
technology to drive the punching equipment. Online non-stop change
the punching position, easy to operate the invention of the design
CHOVYTING Machinery is a manufacturer specialized in the design and
production of plastic bag machinery. Since the company entered the
new factory in 2017, it has adopted modern management methods such
as 6S site management, PMC production management and international
standard QC management, and adopted 3D mechanical design and IEC
standard electrical 3D design to standardize production opetations,
so that to receive a higher rating from customer after use. In
terms of production technology, CHOVYTING continuously purchases
the world’s top CNC large scale machining centers to make parts
processing more precise and standardized, and combines a strong
R&D team and continuous innovation to develop various
professional machinery to provide customers with complete
technology and thoughful service.
CHOVYTING always insists on providing customers with high quality
and perfect products. Therefore, the actual process of each
production step is strictly controlled, and the ISO-9000 quality
system process is used to track and control and have passed the EU
CE safety regulations.
Today, CHOVYTING is the largest manufacturer of bag making machines
in China, and has long-term strategic cooperation with senior
engineers from Germany, Italy, Spain, the United States and Taiwan
to absorb the largest and most comprehensive mechatronics
technology.
1. All machines will be examined and tested before delivery by 5
professional engineers (with more than 15 years machine
experience)
2. Perfect after-sale system, setted up more than 5 Agents in
Chile, Egypt, Pero, Mexico more than 5 experienced technicians work
abroad.
3. Yearly Production Capacity -- 300-400 sets
4. Prompt Reply within 12 Hours
Production Capacity:
Product Line Name Production Line Capacity Actual Units Produced
(Previous Year)
Bag Making Machine; Film Blowing Machine; Printing Machine;
Slitting Machine Bag Making Machine: 30 Sets / Month, Film Blowing
Machine: 25 Sets / Month, Printing Machine: 15 Sets / Month,
Slitting Machine: 15 Sets / Month Bag Making Machine: 320 Sets,
Film Blowing Machine: 200 Sets, Printing Machine: 100 Sets,
Slitting Machine: 100 Sets
FAQ:
Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory
Q2- Where is your factory? How can i visit your company?
A2- CHOVYTING located in Ruian city, Zhejiang province, China. Its
about 40 minutes from shanghai by plane (4 hours by train). All our
clients from home and abroad are warmly welcome to visit us.
Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material, etc. Are suitable for CHOVYTING
machines
Q4- What is type machines do you have?
A4 - special for all of plastic bag making machine, like shopping
bag, diaper bag, courier bag, stand up zipper pouch ,rolling
garbage bag, bread bag, chicken bag etc...
Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999
Q6- What is certificate of machine do you have
A6- CE, ISO 2016, and more than 100 piece Patent of machine
Q7- What about your company the development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass
identification of the provincial new product; and honored as”patent
model enterprise”
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now, and also K
show in German, NPE in America, Arabplast in Dubai, Plastic Eurasia
in Turkey etc.
Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees
Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
